Keterangan

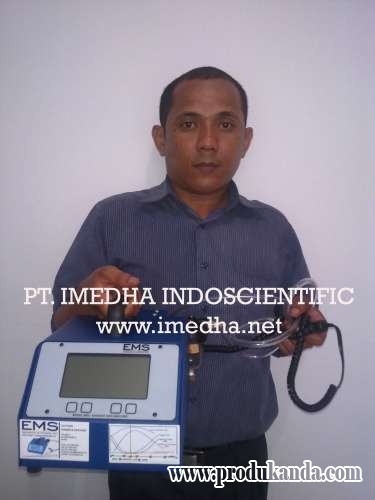

FUNGSI : UNTUK MONITORING GAS EMISI KENDARAAN YANG KELUAR DARI KNALPOT ( HC, CO, CO2, O2, AND NO)

SPECIFICATION:
• Ranges: HC: 0 - 2000 ppm
CO: 0 - 10%
CO2: 0 - 20%
O2: 0 - 25%
NO: 0 - 5000 ppm ( Nitric Oxide ) *
• Warm up: Less than 10 minutes
• Display resolution: HC: 1 ppm vol.
CO: 0.01% vol.
CO2: 0.1% vol.
O2: 0.01% vol.
NO: 1ppm*
• Digital display: 3” x 5” LCD Displays all 5 gases, & AFR or LAMDA
• Accuracy ( Bar 97 EPA ASM ) HC: 4 ppm HC
CO: 0.06% CO
CO2: 0.3% CO2
O2: 0.1% O2
NO: 25 ppm*
• Drift: Zero and span drift are less than ± 0.6% of full scale for the first hour
and less than ± 0.4% of full scale per hour thereafter.
• System response time: 7 seconds to 90% of final reading
• Ambient conditions: 35F ( 2C) to 120F ( 45C) , rel. humidity 0-98%
• Sample house: 25 feet ( 7.5 m) with QD coupling 150 Degrees Max.
• Sample probe: Stainless steel 1200 Degrees F ( replaceable flex tip )
• Mass: Approx.: 10 LBS. ( 4.5 Kg )
